Equipment & Systems

Metering & Control Cabinets

Utility-grade metering cabinets and dedicated control cabinets with CTs, meters and control gear, wired, labelled and tested before dispatch.

project spec

Request a quotation

RangeLV Switchboards & Distribution Boards

Standardsproject spec

To quoteSend a specification, BOQ or line item — we confirm construction, standard and lead time.

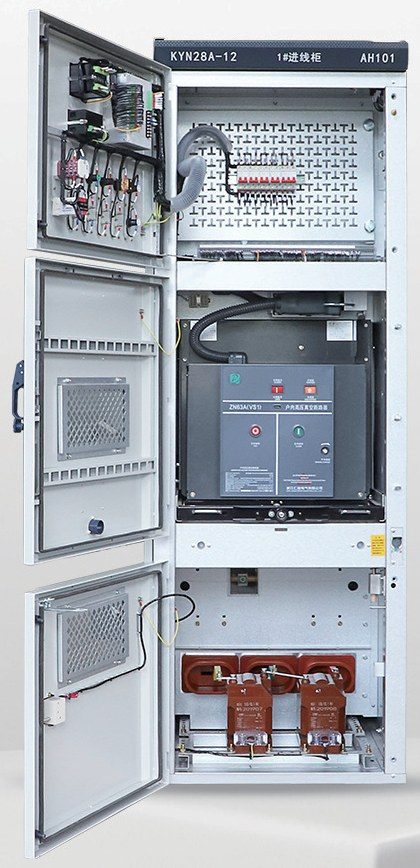

Metering & Control Cabinets — conceptual illustration

Overview

Metering & Control Cabinets: product guide

Metering and control cabinets combine CTs, meters and control equipment according to project or utility requirements. Wiring and interface information are central to the enquiry.

Applications

Typical applications

Use 1Utility metering points

Use 2Dedicated equipment control installations

SelectionAlign the metering diagram and control schematics with the utility or equipment interface requirements.

Standards

Standards and project specifications

Other catalogue references to confirm for the selected configuration: project spec.

State the required standard, edition and project specification in the enquiry. Applicability depends on the selected construction and installation. A catalogue reference does not establish certification or approval for every model; identify any required certificates and test records for review.

Quotation requirements

What to send for quotation

Item 1Metering diagram, CT requirements and meter specification

Item 2Control schematic, terminal schedule and communication interfaces

Item 3Cabinet layout, labelling and test requirements

SpecificationAttach the BOQ, drawings or schedule, required standard and edition, and any acceptance or documentation requirements.

DeliveryState quantities, destination and requested delivery date. Include packing or handling constraints; availability and lead time are subject to quotation.

FAQ

Frequently asked questions

What utility information is needed for metering cabinets?

Provide the applicable utility drawing and metering requirements, including CTs, meter arrangement and access constraints. These requirements should be confirmed before the cabinet configuration is fixed.

What should accompany an enquiry?

Send the product requirements listed above with your specification or BOQ. Mark any items still to be decided so that construction, documentation and delivery requirements can be reviewed before quotation.

Request a Quote

Discuss your Metering & Control Cabinets requirements. Include the application, specification and quantities with your enquiry.
